Description

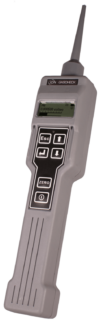

Purchase the Panther Leak Detector. There are 2 handheld leak detector models available, Panther and Panther Pro. The Panther Pro provides data logging via Bluetooth or USB C Cable. The Panther Gas Leak Detector utilizes a micro-thermal conductivity sensor, which offers fast and sensitive detection for many gases. Detection of a number of different gases is possible. These gases include, Helium, Hydrogen and other gases below.
RefrigerantR12
Refrigerant R1301
Refrigerant R134a
Refrigerant R22
Refrigerant R11
Sulphur Hexafluoride SF6
Carbon dioxide CO2
Methane CH4
Argon Ar
Oxygen O2
Refrigerant R502
Refrigerant R404a
Refrigerant R407c
Refrigerant R410a
Refrigerant R507 R507
- Light weight handheld helium leak detector
- Large range of gases like helium, hydrogen and refrigerants
- Datalogging- View and export Panther data into Excel, CSV file or PNG image.
- Leak rate sensitivity for helium is 5 x 10-6 atm scc/sec
- Multi-Gas capability including heliumm, hydrogen and refrigerant gases
-
- OLED Display
- Long battery life up to 20 hours with lithium-ion battery.
- Display, vibration and audible sound provides leak locatio
- Integrated Flashlight for low light areas
- IP44 Ingress Protection- Offers splash proof protection
-
Relative immunity in high electro-magnetic field environments
Panther & Panther Pro Product Information
Using the Panther & Panther Pro could not be easier. Simply move the probe along the leak check area at a speed of 1-2″ per second. Once the leak location has been ‘pin-pointed’, the leak-rate can be quantified from a variety of measurement units. For applications where the leak-rate requires to be logged, the Panther offers 10 days of continuous logging.
The internal piezo pump offers very stable sample flow and makes it highly stable in drafty environments.
The Panther Leak Detector replaces the previous GasCheck Helium Leak Detector Series.Improve your leak testing for product and service applications with the Panther Handheld Helium Leak Detector. The Panther Pro also replaces the GasCheck Tesla model for helium leak detection in MRI systems. The new Panther and Panther Pro is designed to work in the magnetic environment of an MRI.
