Description

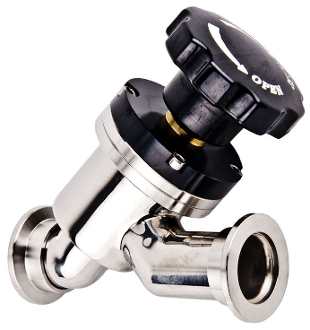

Manual Angle Inline Valve NW Flanged.
Specifications:
– Electropolished 304 Stainless Steel Body
– Bakeable to 204oC intermittent
– Viton seal bonnet: 10-9 torr vacuum rating
Manual Angle Inline Valve NW Flanged
Price range: $404.00 through $579.00
Manual Angle Inline Valve NW Flanged.
Specifications:
– Electropolished 304 Stainless Steel Body
– Bakeable to 204oC intermittent
– Viton seal bonnet: 10-9 torr vacuum rating
Additional information

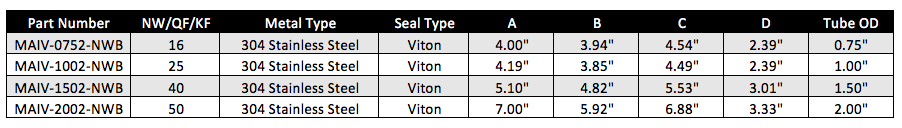

| Size | NW16, 0.75" Tube OD, NW25, 1.00" Tube OD, NW40, 1.50" Tube OD, NW50, 2.00" Tube OD |
|---|
